The ICW Titan Elite Ceiling Mount is a perfect choice for dental and medical/healthcare environments due to its flexibility of movement.  The mount's counterbalanced design with 50° of monitor tilt, 360 of arm and screen rotation, 21" of vertical adjustment and 42" allows for monitor placement that is out of the way, or directly in place for proper screen viewing.  The gas spring-assisted joints and under-monitor handle allow for easy rotation and and mount adjustments.

The mount's arm channels conceal and protect cables, creating a more professional look, while the mount's built in rotation stops prevent wires from twisting.  Engineered, manufactured and assembled in the USA.




Part Number:  T2EQ-C8X5-MW

Arm swivel at 1st and 2nd joints:360°
Arm swivel at mount:360°
Finish:Powder coated gloss white*
Lift distance:21″ (53.3 cm)
Load capacity:28 lbs (12.7 kg)
Maximum horizontal reach:42” (106.7 cm)
Mounting surface:Ceiling
Screen Swivel:360°
Screen tilt:50°
VESA interface:75mm and 100mm

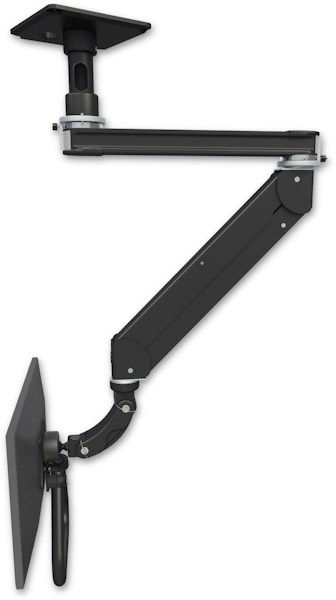

ICW Titan Elite Ceiling LCD Mount - Quicklink with T2 Arm - 5" Down Pole
